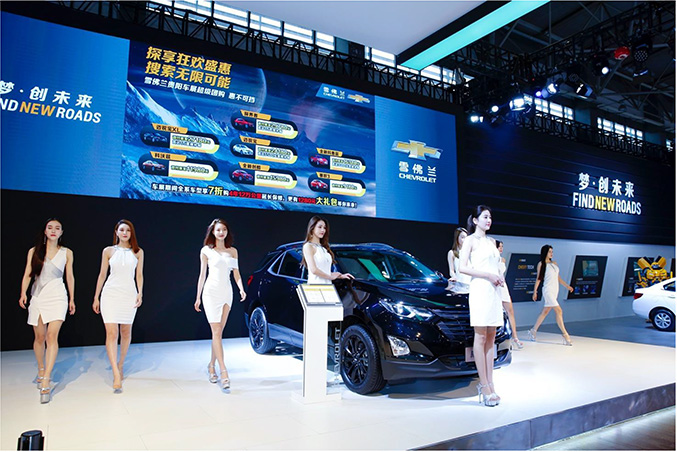

Application: Live Events / Car Show / Festivals / Theatre Stage / Sports
Indoor and Outdoor LED Display
Same Mechanical Desgin for Indoor and Outdoor
3840Hz Refresh Rate
Best Grayscale / High Color Fidelity / EMC Compliance

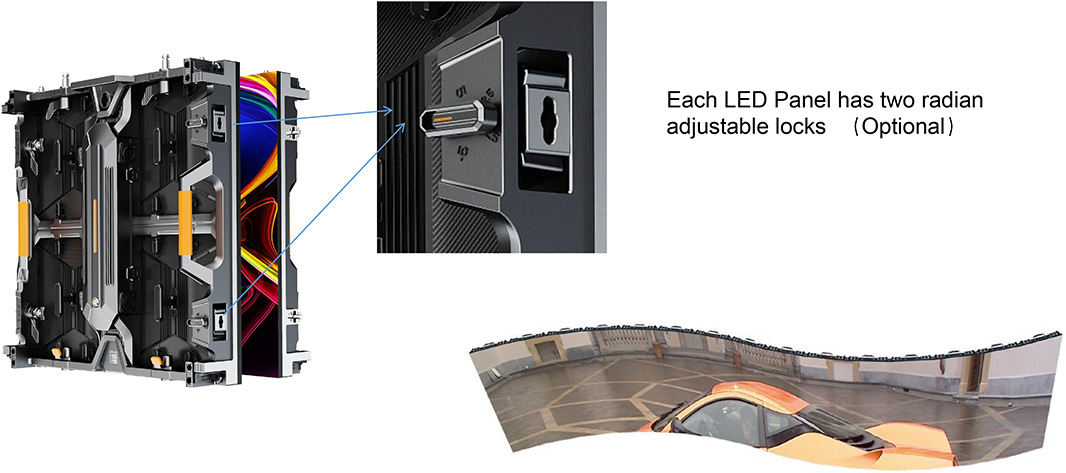

Adjustable radian between two panels

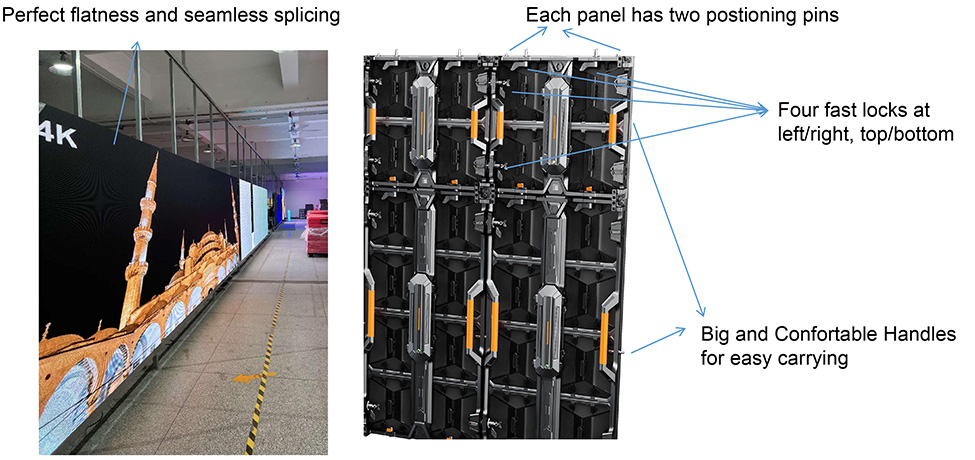

Fast Set-up and Dismantle
Easy Maintenance & Hot-swapped Function
• Easy Maintenance-
- Magnetic modules
- Integrated power box with hasp locks
• Automatically read back the calibration data •Good brightness/ color uniformity
• Hot-swapped module replacement & cable changing
Outdoor LED Display
• High brightness up to 10 000nits
• Anti-UV

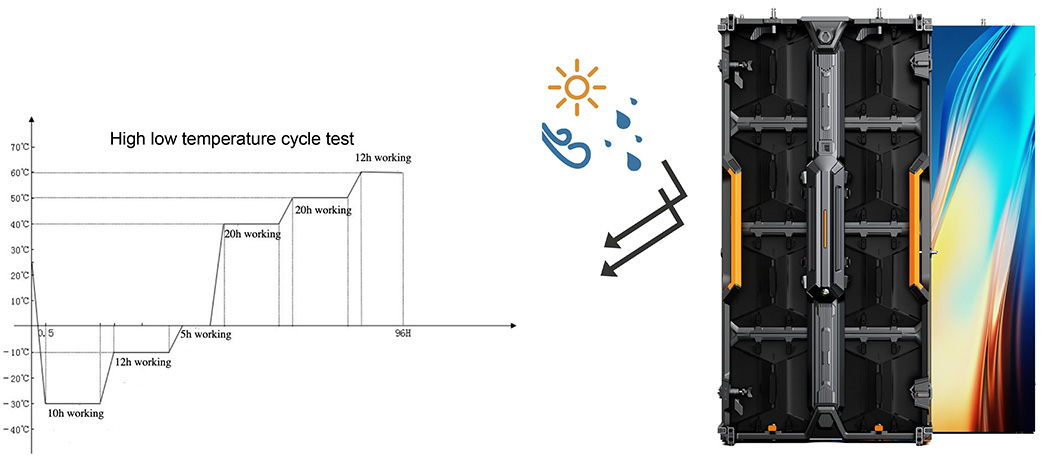

• Reliable working at -30 ~60 degrees
• IP65

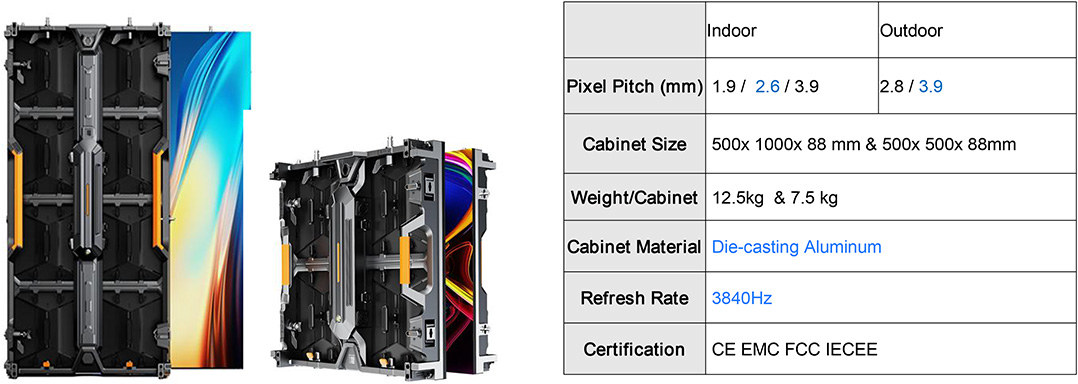

| LBR-I P1.9 | LBR-I P2.6 | LBR-I P3.9 | LBR-O P2.8 | LBR-O P3.9 | |
| Pixel & Module | |||||
| Pixel Pitch (mm) | 1.9mm | 2.6mm | 3.9mm | 2.8mm | 3.9mm |
| Pixel Config | 3-in-1 SMD 1515 | 3-in-1 SMD 1515 | 3-in-1 SMD 2121 | 3-in-1 SMD 1415 | 3-in-1 SMD 1921 |
| Module Dimension (WxH) | 250mmx 250mm | 250mmx 250mm | 250mmx 250mm | 250mmx 250mm | 250mmx 250mm |
| Module Graphic Definition | 128 x128 | 96 x 96 | 64 x 64 | 88 x 88 | 64 x 64 |
Scan Rate | 1/30 | 1/24 | 1/16 | 1/11 | 1/8 |
| Cabinet | |||||
| Cabinet Dimension(Wx Hx D) | 500 x 500 x 88mm | 500 x 500 x 88mm 500 x 1000 x 88mm | 500 x 500 x 88mm 500 x 1000 x 88mm | 500 x 500 x 88mm 500 x 1000 x 88mm | 500 x 500 x 88mm 500 x 1000 x 88mm |
No. of Modules Per Panel (W × H) | 2x2 | 2x2 & 2x4 | 2x2 & 2x4 | 2x2 & 2x4 | 2x2 & 2x4 |
| Cabinet Graphic Definition | 256x 256 | 192x192 &192x 384 | 128x128 &128x 256 | 176x176 &176x 352 | 128x128 &128x 256 |
| Cabinet Material | Die-casting Al | Die-casting Al | Die-casting Al | Die-casting Al | Die-casting Al |
| Single Cabinet Weight | 8.2 ±0.3 kg/panel | 7.2 ±0.3 kg/panel &12.5 ±0.3 kg/pane | 7.2 ±0.3 kg/panel &12.5 ±0.3 kg/panel | 7.5 ±0.3 kg/panel &14.25 ±0.3 kg/panel | 7.5 ±0.3 kg/panel &14.25 ±0.3 kg/panel |
| Weight per ㎡ | 32.4 ±1.2 kg/m² | 25 ±1.2 kg/m² | 25 ±1.2 kg/m² | 28.5 ±1.2 kg/m² | 28.5 ±1.2 kg/m² |
Curve Support (-:concave +: convex) | -5 ,0 +5, +10 | -5 ,0 +5, +10 | -10, -5 ,0 +5, +10 | -10, -5 ,0 +5, +10 | -10, -5 ,0 +5, +10 |
| Max Stacking | 20panels | 20panels | 20panels | 20panels | 20panels |
| Max Hanging | 16panels | 16panels | 16panels | 16panels | 16panels |
| IP Rating | IP30 | IP30 | IP30 | IP65 | IP65 |
| Service | Front & Rear | Front & Rear | Front & Rear | Front & Rear | Front & Rear |
| Optical/ Video | |||||
| Tcon Vendor | Novastar | Novastar | Novastar | Novastar | Novastar |
| Tcon part name | A5s-Plus | A5s-Plus | A5s-Plus | A5s-Plus | A5s-Plus |
| Refresh Rate | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| Brightness (after Cal.) | ≥800nits | ≥1000nits | ≥1000nits | ≥4500nits | ≥5000nits |
| Processing | 16bit | 16bit | 16bit | 16bit | 16bit |
| Colors | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 4000:1 | 4000:1 | 4000:1 | 4000:1 | 4000:1 |
| Horizontal Viewing Angle | 160 | 160 | 160 | 140 | 140 |
| Vertical Viewing Angle | 140 | 140 | 140 | 120 | 120 |
| Electrical/ Environmental | |||||
| Ave. Power Consumption (w/m2) | 150 | 150 | 150 | 250 | 220 |
| Max. Power Consumption (w/m2) | 380 | 380 | 380 | 640 | 560 |
| Max Daisy Chain | Signal： 8(575,000pixels)~9 panels (650,000pixels) Power： 18 panels (220v); 9 panels (110v) | Signal：7(575,000pixels)~8panels (650,000pixels) Power： 18 panels (220v); 9 panels (110v); | Signal：17(575,000pixels)~19panels (650,000pixels) Power： 18 panels (220v); 9 panels (110v); | Signal：9(575,000pixels)~10panels (650,000pixels) Power： 18 panels (220v); 9 panels (110v); | Signal：17(575,000pixels)~19panels (650,000pixels) Power： 18 panels (220v); 9 panels (110v); |
| Operating Temp/Humidity | -10/50,10%RH~80%RH | -10/50,10%RH~80%RH | -10/50,10%RH~80%RH | -20/50,10%RH~80%RH | -20/50,10%RH~80%RH |
| Storage Temp/Humidity | -20/60,10%RH~90%RH | -20/60,10%RH~90%RH | -20/60,10%RH~90%RH | -30/60,10%RH~90%RH | -30/60,10%RH~90%RH |
| Expected LED Lifetime (Max) | 100000h | 100000h | 100000h | 100000h | 100000h |
| Certification | |||||
| Regulatory and Safety Certifications | CCC, CE, FCC, ROHS | CCC, CE, FCC, ROHS | CCC, CE, FCC, ROHS | CCC, CE, FCC, ROHS | CCC, CE, FCC, ROHS |
Product specifications and designs are subject to change without notice.
